Message Header - CometChat Docs

The CometChatMessageHeader component displays user or group details in the toolbar including avatar, name, status, and typing indicators. It also provides navigation controls and call buttons.

AI Integration Quick Reference

{
  "component": "CometChatMessageHeader",
  "package": "CometChatUIKitSwift",
  "import": "import CometChatUIKitSwift\nimport CometChatSDK",
  "description": "Displays user or group details in the toolbar with avatar, name, status, typing indicators, and navigation controls.",
  "inherits": "UIView",
  "primaryOutput": {
    "callback": "onBack",
    "type": "() -> Void"
  },
  "props": {
    "data": {
      "user": {
        "type": "User?",
        "default": "nil",
        "note": "User to display in header"
      },
      "group": {
        "type": "Group?",
        "default": "nil",
        "note": "Group to display in header"
      }
    },
    "callbacks": {
      "onBack": "() -> Void",
      "onError": "(CometChatException) -> Void",
      "onAiChatHistoryClicked": "() -> Void",
      "onAiNewChatClicked": "() -> Void"
    },
    "visibility": {
      "hideBackButton": { "type": "Bool", "default": false },
      "hideUserStatus": { "type": "Bool", "default": false },
      "hideVideoCallButton": { "type": "Bool", "default": false },
      "hideVoiceCallButton": { "type": "Bool", "default": false },
      "hideNewChatButton": { "type": "Bool", "default": false },
      "hideChatHistoryButton": { "type": "Bool", "default": false },
      "hideThreadSubscriptionButton": { "type": "Bool", "default": false },
      "disableTyping": { "type": "Bool", "default": false }
    },
    "threads": {
      "parentMessage": { "type": "BaseMessage?", "default": "nil", "note": "Set to put the header in thread mode" },
      "enableThreadSubscription": { "type": "Bool", "default": false, "note": "Also requires parentMessage" }
    },
    "style": {
      "avatarStyle": { "type": "AvatarStyle", "default": "AvatarStyle()" },
      "statusIndicatorStyle": { "type": "StatusIndicatorStyle", "default": "StatusIndicatorStyle()" },
      "typingIndicatorStyle": { "type": "TypingIndicatorStyle", "default": "TypingIndicatorStyle()" }
    },
    "formatting": {
      "dateTimeFormatter": { "type": "CometChatDateTimeFormatter?", "default": "nil" }
    },
    "viewSlots": {
      "listItemView": "(User?, Group?) -> UIView",
      "leadingView": "(User?, Group?) -> UIView",
      "titleView": "(User?, Group?) -> UIView",
      "subtitleView": "(User?, Group?) -> UIView",
      "trailView": "(User?, Group?) -> UIView"
    }
  },
  "methods": {
    "connection": {
      "connect()": "Establishes WebSocket connection for real-time updates",
      "disconnect()": "Disconnects WebSocket connection"
    },
    "menuCustomization": {
      "set(options:)": "((User?, Group?) -> [CometChatMessageHeaderOption])? - Sets custom menu options"
    }
  },
  "events": [],
  "sdkListeners": [
    "onUserOnline",
    "onUserOffline",
    "onTypingStarted",
    "onTypingEnded"
  ],
  "compositionExample": {
    "description": "MessageHeader is typically used within CometChatMessages at the top of the chat screen",
    "components": ["CometChatMessageHeader", "CometChatMessageList", "CometChatMessageComposer"],
    "flow": "User views header → sees recipient info → taps back to return to conversations"
  },
  "types": {}
}

Field	Value
Component	`CometChatMessageHeader`
Package	`CometChatUIKitSwift`
Inherits	`UIView`

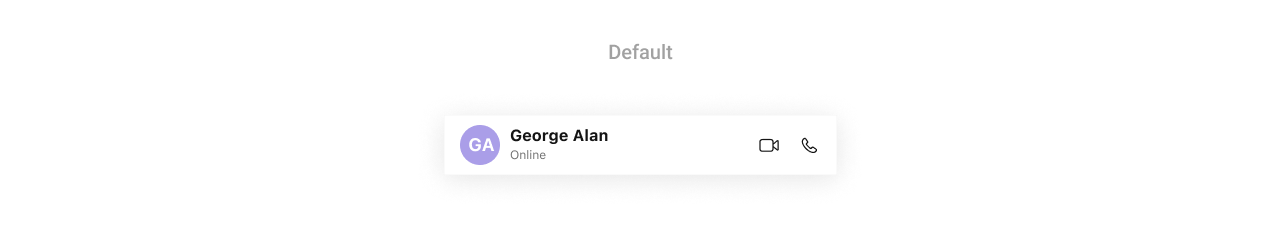

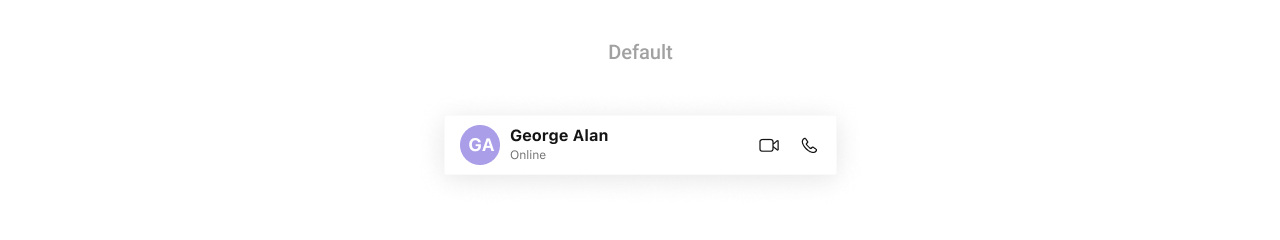

Where It Fits

CometChatMessageHeader displays the recipient’s information at the top of the chat screen. It’s typically used within CometChatMessages alongside CometChatMessageList and CometChatMessageComposer.

import UIKit
import CometChatUIKitSwift
import CometChatSDK

class ChatViewController: UIViewController {

    private var messageHeader: CometChatMessageHeader!

    override func viewDidLoad() {
        super.viewDidLoad()
        setupMessageHeader()
    }

    private func setupMessageHeader(for user: User) {
        messageHeader = CometChatMessageHeader()
        messageHeader.set(user: user)

        // Handle back button
        messageHeader.set(onBack: { [weak self] in
            self?.navigationController?.popViewController(animated: true)
        })

        view.addSubview(messageHeader)
    }
}

Minimal Render

import CometChatUIKitSwift
import CometChatSDK

let messageHeader = CometChatMessageHeader()
messageHeader.set(user: user)

Actions and Events

Callback Props

onBack

Fires when the back button is pressed. Use this for custom navigation handling.

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

messageHeader.set(onBack: { [weak self] in
    self?.navigationController?.popViewController(animated: true)
})

onError

Fires when an error occurs.

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

messageHeader.set(onError: { error in
    print("Error: \(error.errorDescription)")
})

Actions Reference

Method	Description	Example
`set(onBack:)`	Triggered when back button is pressed	Custom navigation
`set(onError:)`	Triggered when an error occurs	Show error alert
`set(user:)`	Sets the user to display	Configure header for user
`set(group:)`	Sets the group to display	Configure header for group

SDK Events (Real-Time, Automatic)

SDK Listener	Internal behavior
`onUserOnline`	Updates status indicator to online
`onUserOffline`	Updates status indicator to offline
`onTypingStarted`	Shows typing indicator in subtitle
`onTypingEnded`	Hides typing indicator

Custom View Slots

Slot	Signature	Replaces
`listItemView`	`(User?, Group?) -> UIView`	Entire header content
`leadingView`	`(User?, Group?) -> UIView`	Avatar / left section
`titleView`	`(User?, Group?) -> UIView`	Name / title text
`subtitleView`	`(User?, Group?) -> UIView`	Status / subtitle text
`trailView`	`(User?, Group?) -> UIView`	Right side (call buttons)

listItemView

Replace the entire header content with a custom view.

import UIKit
import CometChatUIKitSwift
import CometChatSDK

let messageHeader = CometChatMessageHeader()

messageHeader.set(listItemView: { user, group in
    let customView = CustomHeaderView()
    customView.configure(user: user, group: group)
    return customView
})

You can create a CustomHeaderView as a custom UIView:

import UIKit
import CometChatSDK

class CustomHeaderView: UIView {

    private let backButton: UIButton = {
        let button = UIButton(type: .system)
        button.setImage(UIImage(systemName: "chevron.left"), for: .normal)
        button.tintColor = .black
        return button
    }()

    private let profileImageView: UIImageView = {
        let imageView = UIImageView()
        imageView.contentMode = .scaleAspectFill
        imageView.layer.cornerRadius = 18
        imageView.clipsToBounds = true
        imageView.backgroundColor = .lightGray
        return imageView
    }()

    private let nameLabel: UILabel = {
        let label = UILabel()
        label.font = UIFont.systemFont(ofSize: 16, weight: .semibold)
        label.textColor = .black
        return label
    }()

    private let statusLabel: UILabel = {
        let label = UILabel()
        label.font = UIFont.systemFont(ofSize: 12)
        label.textColor = .gray
        return label
    }()

    private let videoCallButton: UIButton = {
        let button = UIButton(type: .system)
        button.setImage(UIImage(systemName: "video.fill"), for: .normal)
        button.tintColor = .black
        return button
    }()

    private let callButton: UIButton = {
        let button = UIButton(type: .system)
        button.setImage(UIImage(systemName: "phone.fill"), for: .normal)
        button.tintColor = .black
        return button
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private func setupView() {
        backgroundColor = .white

        let userInfoStack = UIStackView(arrangedSubviews: [nameLabel, statusLabel])
        userInfoStack.axis = .vertical
        userInfoStack.spacing = 2
        userInfoStack.alignment = .leading

        let rightButtonsStack = UIStackView(arrangedSubviews: [videoCallButton, callButton])
        rightButtonsStack.axis = .horizontal
        rightButtonsStack.spacing = 16

        addSubview(backButton)
        addSubview(profileImageView)
        addSubview(userInfoStack)
        addSubview(rightButtonsStack)

        backButton.translatesAutoresizingMaskIntoConstraints = false
        profileImageView.translatesAutoresizingMaskIntoConstraints = false
        userInfoStack.translatesAutoresizingMaskIntoConstraints = false
        rightButtonsStack.translatesAutoresizingMaskIntoConstraints = false

        NSLayoutConstraint.activate([
            backButton.leadingAnchor.constraint(equalTo: leadingAnchor, constant: 16),
            backButton.centerYAnchor.constraint(equalTo: centerYAnchor),
            backButton.widthAnchor.constraint(equalToConstant: 30),
            backButton.heightAnchor.constraint(equalToConstant: 30),

            profileImageView.leadingAnchor.constraint(equalTo: backButton.trailingAnchor, constant: 10),
            profileImageView.centerYAnchor.constraint(equalTo: centerYAnchor),
            profileImageView.widthAnchor.constraint(equalToConstant: 36),
            profileImageView.heightAnchor.constraint(equalToConstant: 36),

            userInfoStack.leadingAnchor.constraint(equalTo: profileImageView.trailingAnchor, constant: 10),
            userInfoStack.centerYAnchor.constraint(equalTo: centerYAnchor),

            rightButtonsStack.trailingAnchor.constraint(equalTo: trailingAnchor, constant: -16),
            rightButtonsStack.centerYAnchor.constraint(equalTo: centerYAnchor)
        ])
    }

    func configure(user: User?, group: Group?) {
        nameLabel.text = user?.name ?? group?.name ?? "Chat"
        if let user = user {
            statusLabel.text = user.status == .online ? "Online" : "Offline"
        } else if let group = group {
            statusLabel.text = "\(group.membersCount) members"
        }
    }
}

leadingView

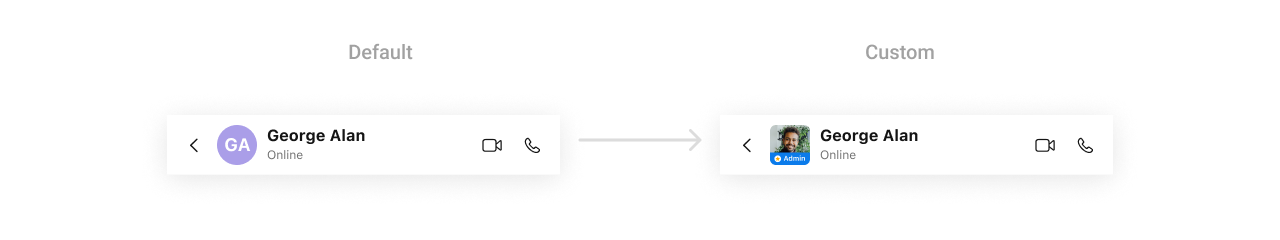

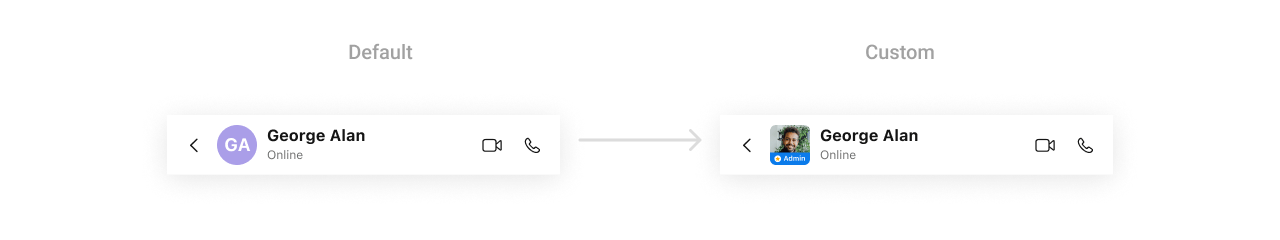

Customize the leading view (avatar area) of the header.

import UIKit
import CometChatUIKitSwift
import CometChatSDK

let messageHeader = CometChatMessageHeader()

messageHeader.set(leadingView: { user, group in
    let view = CustomLeadingView()
    return view
})

You can create a CustomLeadingView as a custom UIView:

import UIKit

class CustomLeadingView: UIView {

    private let profileImageView: UIImageView = {
        let imageView = UIImageView()
        imageView.contentMode = .scaleAspectFill
        imageView.layer.cornerRadius = 20
        imageView.clipsToBounds = true
        imageView.backgroundColor = .lightGray
        imageView.image = UIImage(systemName: "person.fill")
        return imageView
    }()

    private let badgeLabel: UILabel = {
        let label = UILabel()
        label.text = "Admin"
        label.font = UIFont.systemFont(ofSize: 10, weight: .bold)
        label.textColor = .white
        label.backgroundColor = .orange
        label.textAlignment = .center
        label.layer.cornerRadius = 6
        label.clipsToBounds = true
        return label
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private func setupView() {
        addSubview(profileImageView)
        addSubview(badgeLabel)

        profileImageView.translatesAutoresizingMaskIntoConstraints = false
        badgeLabel.translatesAutoresizingMaskIntoConstraints = false

        NSLayoutConstraint.activate([
            profileImageView.leadingAnchor.constraint(equalTo: leadingAnchor),
            profileImageView.trailingAnchor.constraint(equalTo: trailingAnchor),
            profileImageView.topAnchor.constraint(equalTo: topAnchor),
            profileImageView.bottomAnchor.constraint(equalTo: bottomAnchor),
            profileImageView.heightAnchor.constraint(equalToConstant: 40),
            profileImageView.widthAnchor.constraint(equalToConstant: 40),

            badgeLabel.trailingAnchor.constraint(equalTo: profileImageView.trailingAnchor),
            badgeLabel.bottomAnchor.constraint(equalTo: profileImageView.bottomAnchor),
            badgeLabel.widthAnchor.constraint(equalToConstant: 40),
            badgeLabel.heightAnchor.constraint(equalToConstant: 12)
        ])
    }
}

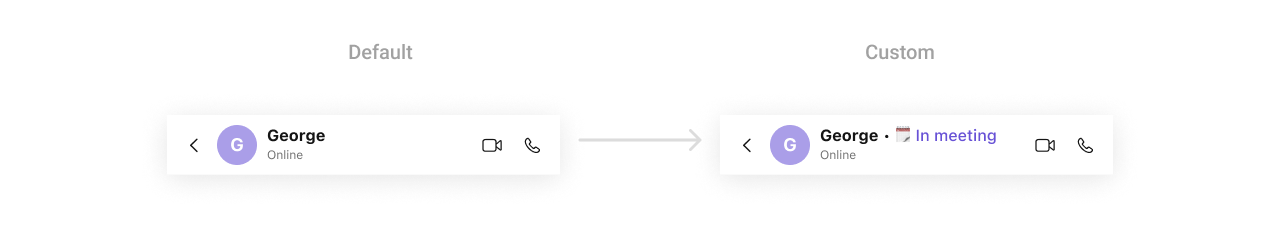

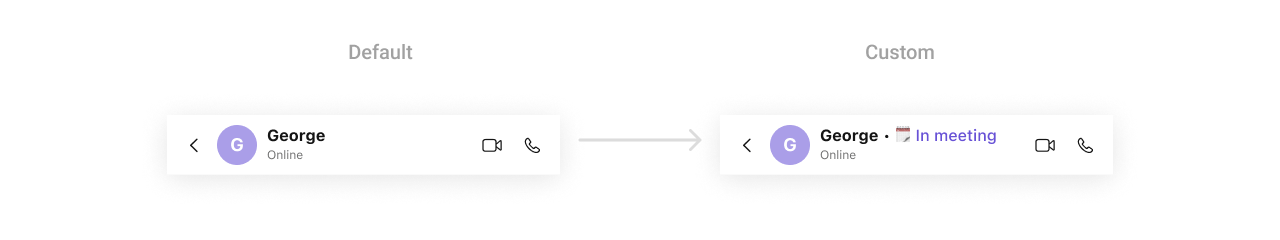

titleView

Customize the title view of the header.

import UIKit
import CometChatUIKitSwift
import CometChatSDK

let messageHeader = CometChatMessageHeader()

messageHeader.set(titleView: { user, group in
    let view = CustomTitleView()
    return view
})

You can create a CustomTitleView as a custom UIView:

import UIKit

class CustomTitleView: UIView {

    private let titleLabel: UILabel = {
        let label = UILabel()
        label.text = "Artistic Design"
        label.font = UIFont.systemFont(ofSize: 16, weight: .medium)
        label.textColor = .black
        return label
    }()

    private let publicBadge: UIView = {
        let view = UIView()
        view.backgroundColor = .blue
        view.layer.cornerRadius = 10

        let icon = UIImageView(image: UIImage(systemName: "person.3.fill"))
        icon.tintColor = .white
        icon.contentMode = .scaleAspectFit

        let label = UILabel()
        label.text = "Public"
        label.font = UIFont.systemFont(ofSize: 12, weight: .bold)
        label.textColor = .white

        let stackView = UIStackView(arrangedSubviews: [icon, label])
        stackView.spacing = 4
        stackView.alignment = .center
        stackView.translatesAutoresizingMaskIntoConstraints = false

        view.addSubview(stackView)

        NSLayoutConstraint.activate([
            stackView.centerXAnchor.constraint(equalTo: view.centerXAnchor),
            stackView.centerYAnchor.constraint(equalTo: view.centerYAnchor),
            view.widthAnchor.constraint(equalToConstant: 60),
            view.heightAnchor.constraint(equalToConstant: 20)
        ])

        return view
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private func setupView() {
        addSubview(titleLabel)
        addSubview(publicBadge)

        titleLabel.translatesAutoresizingMaskIntoConstraints = false
        publicBadge.translatesAutoresizingMaskIntoConstraints = false

        NSLayoutConstraint.activate([
            titleLabel.leadingAnchor.constraint(equalTo: leadingAnchor),
            titleLabel.centerYAnchor.constraint(equalTo: centerYAnchor),

            publicBadge.leadingAnchor.constraint(equalTo: titleLabel.trailingAnchor, constant: 6),
            publicBadge.centerYAnchor.constraint(equalTo: centerYAnchor)
        ])
    }
}

subtitleView

Customize the subtitle area (status, typing indicator).

import UIKit
import CometChatUIKitSwift
import CometChatSDK

let messageHeader = CometChatMessageHeader()

messageHeader.set(subtitleView: { user, group in
    let label = UILabel()
    label.font = UIFont.systemFont(ofSize: 13)
    label.textColor = UIColor.secondaryLabel

    if let user = user {
        label.text = user.status == .online ? "🟢 Online" : "⚫ Offline"
    } else if let group = group {
        label.text = "\(group.membersCount) members"
    }

    return label
})

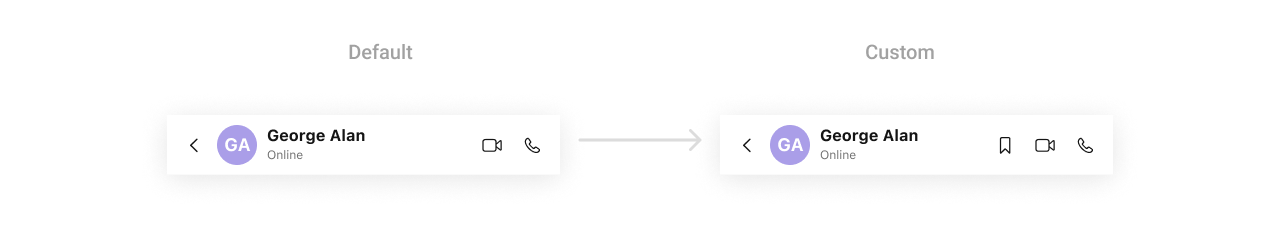

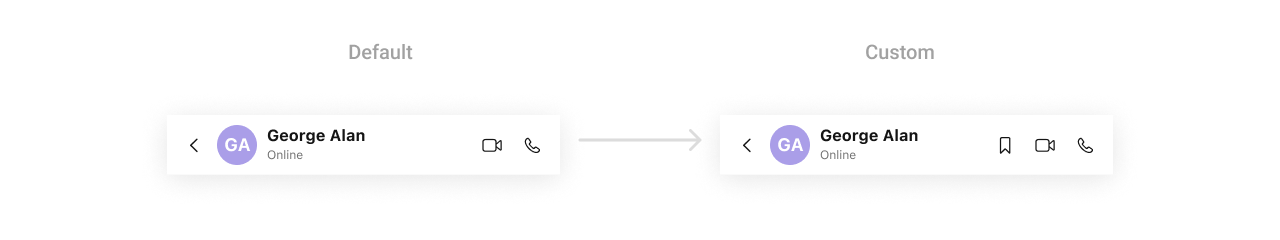

trailView

Customize the right side of the header (call buttons, etc.).

import UIKit
import CometChatUIKitSwift
import CometChatSDK

let messageHeader = CometChatMessageHeader()

messageHeader.set(trailView: { user, group in
    let view = CustomTrailView()
    return view
})

You can create a CustomTrailView as a custom UIView:

import UIKit

class CustomTrailView: UIView {

    private let videoCallButton: UIButton = {
        let button = UIButton(type: .system)
        let image = UIImage(systemName: "video.fill")?.withRenderingMode(.alwaysTemplate)
        button.setImage(image, for: .normal)
        button.tintColor = .black
        return button
    }()

    private let callButton: UIButton = {
        let button = UIButton(type: .system)
        let image = UIImage(systemName: "phone.fill")?.withRenderingMode(.alwaysTemplate)
        button.setImage(image, for: .normal)
        button.tintColor = .black
        return button
    }()

    private let bookMarkButton: UIButton = {
        let button = UIButton(type: .system)
        let image = UIImage(systemName: "bookmark.fill")?.withRenderingMode(.alwaysTemplate)
        button.setImage(image, for: .normal)
        button.tintColor = .black
        return button
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)
        setupView()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private func setupView() {
        let buttonsStack = UIStackView(arrangedSubviews: [videoCallButton, callButton, bookMarkButton])
        buttonsStack.axis = .horizontal
        buttonsStack.spacing = 16
        buttonsStack.distribution = .fillEqually

        addSubview(buttonsStack)
        buttonsStack.translatesAutoresizingMaskIntoConstraints = false

        NSLayoutConstraint.activate([
            buttonsStack.leadingAnchor.constraint(equalTo: leadingAnchor),
            buttonsStack.trailingAnchor.constraint(equalTo: trailingAnchor),
            buttonsStack.topAnchor.constraint(equalTo: topAnchor),
            buttonsStack.bottomAnchor.constraint(equalTo: bottomAnchor)
        ])
    }
}

Styling

Style Hierarchy

Global styles (CometChatMessageHeader.style) apply to all instances
Instance styles override global for specific instances

Global Level Styling

import UIKit
import CometChatUIKitSwift

// Apply global styles that affect all CometChatMessageHeader instances
CometChatMessageHeader.style.backgroundColor = UIColor.systemBackground
CometChatMessageHeader.style.titleTextColor = UIColor.label
CometChatMessageHeader.style.titleTextFont = UIFont.systemFont(ofSize: 17, weight: .semibold)
CometChatMessageHeader.style.subtitleTextColor = UIColor.secondaryLabel
CometChatMessageHeader.style.subtitleTextFont = UIFont.systemFont(ofSize: 13)
CometChatMessageHeader.style.backButtonImageTintColor = UIColor.systemBlue

// Custom avatar style
let avatarStyle = AvatarStyle()
avatarStyle.cornerRadius = CometChatCornerStyle(cornerRadius: 20)
CometChatMessageHeader.style.avatarStyle = avatarStyle

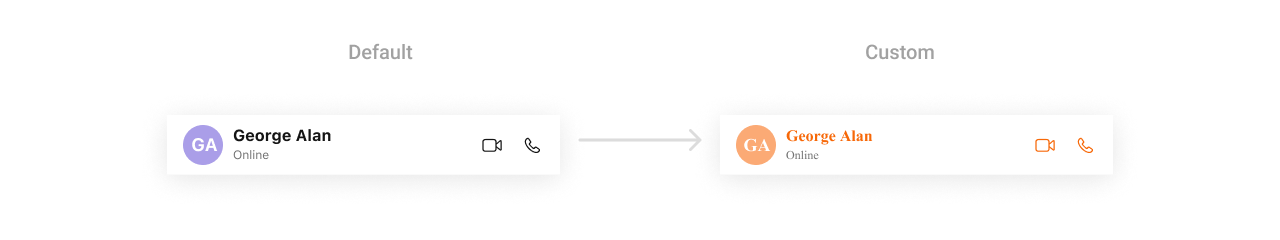

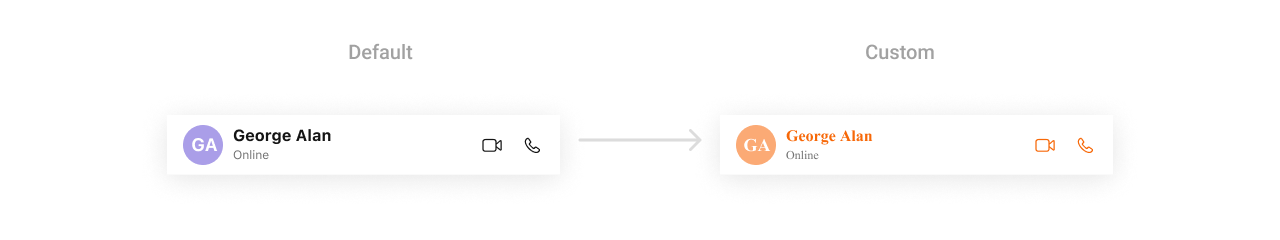

Instance Level Styling

import UIKit
import CometChatUIKitSwift

// Create a custom style for a specific instance
var customStyle = MessageHeaderStyle()
customStyle.backgroundColor = UIColor(red: 0.95, green: 0.95, blue: 0.97, alpha: 1.0)
customStyle.titleTextColor = UIColor.darkGray
customStyle.titleTextFont = UIFont.systemFont(ofSize: 18, weight: .bold)
customStyle.subtitleTextColor = UIColor.gray

let messageHeader = CometChatMessageHeader()
messageHeader.style = customStyle

Key Style Properties

Property	Type	Default	Description
`backgroundColor`	`UIColor`	`CometChatTheme.backgroundColor01`	Background color
`borderWidth`	`CGFloat`	`0`	Border width
`borderColor`	`UIColor`	`.clear`	Border color
`cornerRadius`	`CometChatCornerStyle?`	`nil`	Corner radius
`titleTextColor`	`UIColor`	`CometChatTheme.textColorPrimary`	Title text color
`titleTextFont`	`UIFont`	`CometChatTypography.Heading4.medium`	Title font
`subtitleTextColor`	`UIColor`	`CometChatTheme.textColorSecondary`	Subtitle text color
`subtitleTextFont`	`UIFont`	`CometChatTypography.Body.regular`	Subtitle font
`backButtonImageTintColor`	`UIColor`	`CometChatTheme.iconColorPrimary`	Back button tint
`backButtonIcon`	`UIImage?`	System chevron	Back button icon
`privateGroupBadgeImageTintColor`	`UIColor`	`CometChatTheme.iconColorSecondary`	Private group badge tint
`passwordProtectedGroupBadgeImageTintColor`	`UIColor`	`CometChatTheme.iconColorSecondary`	Password group badge tint
`avatarStyle`	`AvatarStyle`	`AvatarStyle()`	Avatar customization
`statusIndicatorStyle`	`StatusIndicatorStyle`	`StatusIndicatorStyle()`	Online/offline status indicator customization
`typingIndicatorStyle`	`TypingIndicatorStyle`	`TypingIndicatorStyle()`	Typing indicator customization

Customization Matrix

What to change	Where	Property/API	Example
Background color	Style	`backgroundColor`	`UIColor.systemBackground`
Title appearance	Style	`titleTextColor`, `titleTextFont`	Custom colors and fonts
Subtitle appearance	Style	`subtitleTextColor`, `subtitleTextFont`	Custom colors and fonts
Back button	Style	`backButtonIcon`, `backButtonImageTintColor`	Custom icon and color
Avatar look	Style	`avatarStyle`	`AvatarStyle()` with custom radius
Status indicator	Style	`statusIndicatorStyle`	`StatusIndicatorStyle()` with custom colors
Typing indicator	Style	`typingIndicatorStyle`	`TypingIndicatorStyle()` with custom font
Hide back button	Property	`hideBackButton`	`header.hideBackButton = true`
Hide status	Property	`hideUserStatus`	`header.hideUserStatus = true`
Disable typing	Property	`disableTyping`	`header.disableTyping = true`
Hide AI buttons	Property	`hideNewChatButton`, `hideChatHistoryButton`	`header.hideNewChatButton = true`
Custom subtitle	View Slot	`set(subtitleView:)`	See Custom View Slots
Custom menu options	Method	`set(options:)`	See Menu Customization

Connection Management

Manually control the WebSocket connection for the message header.

connect()

Establishes the WebSocket connection for real-time updates. Use this when you need to manually reconnect after disconnecting.

@discardableResult
public func connect() -> Self

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

// Manually connect to receive real-time updates
messageHeader.connect()

disconnect()

Disconnects the WebSocket connection. Use this when you want to temporarily stop receiving real-time updates, such as when the view is not visible.

@discardableResult
public func disconnect() -> Self

import UIKit
import CometChatUIKitSwift

class ChatViewController: UIViewController {

    private var messageHeader: CometChatMessageHeader!

    override func viewWillDisappear(_ animated: Bool) {
        super.viewWillDisappear(animated)
        messageHeader.disconnect()
    }

    override func viewWillAppear(_ animated: Bool) {
        super.viewWillAppear(animated)
        messageHeader.connect()
    }
}

set(options:)

Sets custom menu options for the message header. These options appear in the header’s menu (typically accessed via a more button or long press).

@discardableResult
public func set(options: ((_ user: User?, _ group: Group?) -> [CometChatMessageHeaderOption])?) -> Self

Parameter	Type	Description
`options`	`((User?, Group?) -> [CometChatMessageHeaderOption])?`	Closure that returns an array of menu options based on the current user or group

import CometChatUIKitSwift
import CometChatSDK

let messageHeader = CometChatMessageHeader()

messageHeader.set(options: { user, group in
    var options = [CometChatMessageHeaderOption]()

    // Add a custom "View Profile" option
    let viewProfileOption = CometChatMessageHeaderOption(
        id: "view_profile",
        title: "View Profile",
        icon: UIImage(systemName: "person.circle")
    ) { user, group in
        // Handle view profile action
        print("View profile tapped")
    }
    options.append(viewProfileOption)

    // Add a custom "Mute Notifications" option
    let muteOption = CometChatMessageHeaderOption(
        id: "mute_notifications",
        title: "Mute Notifications",
        icon: UIImage(systemName: "bell.slash")
    ) { user, group in
        // Handle mute action
        print("Mute notifications tapped")
    }
    options.append(muteOption)

    return options
})

Props

All props are optional. Sorted alphabetically.

avatarStyle

Customizes the appearance of the avatar in the message header.


Type	`AvatarStyle`
Default	`AvatarStyle()`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

let avatarStyle = AvatarStyle()
avatarStyle.backgroundColor = UIColor.systemBlue
avatarStyle.cornerRadius = CometChatCornerStyle(cornerRadius: 20)
avatarStyle.borderWidth = 2
avatarStyle.borderColor = UIColor.white

messageHeader.set(avatarStyle: avatarStyle)

dateTimeFormatter

Custom formatter for date/time display in the message header (e.g., “Last seen at…”).


Type	`CometChatDateTimeFormatter?`
Default	`nil`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

let dateTimeFormatter = CometChatDateTimeFormatter()
dateTimeFormatter.todayFormat = "h:mm a"
dateTimeFormatter.yesterdayFormat = "'Yesterday at' h:mm a"
dateTimeFormatter.otherFormat = "MMM d, yyyy"

messageHeader.dateTimeFormatter = dateTimeFormatter

disableTyping

Disables typing indicators in the message header.


Type	`Bool`
Default	`false`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()
messageHeader.disableTyping = true

enableThreadSubscription

Enables the subscribe/unsubscribe bell in the header’s trailing area, letting users opt in to notifications for a thread’s replies. The bell also requires parentMessage — setting this flag alone on a conversation header renders nothing, so turning the feature on globally cannot put a thread control on a non-thread screen. The bell manages itself: it reads the current state from the SDK, flips optimistically on tap, reverts on failure, toasts in both directions, and stays in step with a toggle made from the message action sheet.


Type	`Bool`
Default	`false`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()
messageHeader.set(parentMessage: parentMessage)
messageHeader.enableThreadSubscription = true

See the Thread Subscription guide for the full feature.

hideBackButton

Hides the back button in the header.


Type	`Bool`
Default	`false`

hideChatHistoryButton

Hides the AI chat history button in the header.


Type	`Bool`
Default	`false`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()
messageHeader.hideChatHistoryButton = true

hideNewChatButton

Hides the AI new chat button in the header.


Type	`Bool`
Default	`false`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()
messageHeader.hideNewChatButton = true

hideUserStatus

Hides the user status (online/offline/last active).


Type	`Bool`
Default	`false`

hideThreadSubscriptionButton

Hides the subscribe/unsubscribe bell while leaving the feature on — for a screen that already draws its own control and would otherwise show two.


Type	`Bool`
Default	`false`

hideVideoCallButton

Hides the video call button.


Type	`Bool`
Default	`false`

hideVoiceCallButton

Hides the voice call button.


Type	`Bool`
Default	`false`

onAiChatHistoryClicked

Callback triggered when the AI chat history button is clicked.


Type	`(() -> Void)?`
Default	`nil`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

messageHeader.set(onAiChatHistoryClicked: { [weak self] in
    // Handle AI chat history button click
    self?.presentAiChatHistory()
})

onAiNewChatClicked

Callback triggered when the AI new chat button is clicked.


Type	`(() -> Void)?`
Default	`nil`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

messageHeader.set(onAiNewChatClicked: { [weak self] in
    // Handle AI new chat button click
    self?.startNewAiChat()
})

parentMessage

The thread’s root message the subscription bell acts on. Setting it puts the header in thread mode; leaving it nil keeps the header in its normal conversation mode with no bell.


Type	`BaseMessage?`
Default	`nil`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()
messageHeader.set(parentMessage: parentMessage)

statusIndicatorStyle

Customizes the appearance of the online/offline status indicator.


Type	`StatusIndicatorStyle`
Default	`StatusIndicatorStyle()`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

let statusIndicatorStyle = StatusIndicatorStyle()
statusIndicatorStyle.backgroundColor = UIColor.systemGreen
statusIndicatorStyle.borderWidth = 2
statusIndicatorStyle.borderColor = UIColor.white
statusIndicatorStyle.cornerRadius = CometChatCornerStyle(cornerRadius: 6)

messageHeader.set(statusIndicatorStyle: statusIndicatorStyle)

typingIndicatorStyle

Customizes the appearance of the typing indicator in the message header subtitle.


Type	`TypingIndicatorStyle`
Default	`TypingIndicatorStyle()`

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

let typingIndicatorStyle = TypingIndicatorStyle()
typingIndicatorStyle.textColor = UIColor.systemGray
typingIndicatorStyle.textFont = UIFont.italicSystemFont(ofSize: 13)

messageHeader.set(typingIndicatorStyle: typingIndicatorStyle)

Events

The MessageHeader component does not emit any global UI events.

Date Time Formatter

Customize how timestamps appear in the message header (e.g., “Last seen at…”) using the CometChatDateTimeFormatter.

Global Level Formatting

import CometChatUIKitSwift

// Customize time format for last seen
CometChatMessageHeader.dateTimeFormatter.time = { timestamp in
    let date = Date(timeIntervalSince1970: TimeInterval(timestamp))
    let formatter = DateFormatter()
    formatter.dateFormat = "h:mm a"
    return "Last seen at " + formatter.string(from: date)
}

// Customize today format
CometChatMessageHeader.dateTimeFormatter.today = { timestamp in
    let date = Date(timeIntervalSince1970: TimeInterval(timestamp))
    let formatter = DateFormatter()
    formatter.dateFormat = "h:mm a"
    return "Last seen today at " + formatter.string(from: date)
}

// Customize yesterday format
CometChatMessageHeader.dateTimeFormatter.yesterday = { timestamp in
    let date = Date(timeIntervalSince1970: TimeInterval(timestamp))
    let formatter = DateFormatter()
    formatter.dateFormat = "h:mm a"
    return "Last seen yesterday at " + formatter.string(from: date)
}

Instance Level Formatting

import CometChatUIKitSwift

let messageHeader = CometChatMessageHeader()

messageHeader.dateTimeFormatter.otherDay = { timestamp in
    let date = Date(timeIntervalSince1970: TimeInterval(timestamp))
    let formatter = DateFormatter()
    formatter.dateFormat = "MMM d, yyyy"
    return "Last seen on " + formatter.string(from: date)
}

Available Formatters

Formatter	Purpose	Default Format
`time`	Standard time display	`h:mm a`
`today`	Last seen today	`Today at h:mm a`
`yesterday`	Last seen yesterday	`Yesterday at h:mm a`
`lastweek`	Last seen within last week	Day name
`otherDay`	Last seen older dates	`MMM d, yyyy`

Common Patterns

Hide call buttons

let messageHeader = CometChatMessageHeader()
messageHeader.set(user: user)
messageHeader.hideVideoCallButton = true
messageHeader.hideVoiceCallButton = true

Custom back button action

let messageHeader = CometChatMessageHeader()
messageHeader.set(user: user)

messageHeader.set(onBack: { [weak self] in
    // Custom navigation logic
    self?.dismiss(animated: true)
})

Custom subtitle with typing indicator

let messageHeader = CometChatMessageHeader()
messageHeader.set(user: user)

messageHeader.set(subtitleView: { user, group in
    let label = UILabel()
    label.font = UIFont.systemFont(ofSize: 12)

    if let user = user {
        label.text = user.status == .online ? "Online" : "Offline"
        label.textColor = user.status == .online ? .systemGreen : .secondaryLabel
    }

    return label
})

Minimal header

let messageHeader = CometChatMessageHeader()
messageHeader.set(user: user)
messageHeader.hideBackButton = true
messageHeader.hideUserStatus = true
messageHeader.hideVideoCallButton = true
messageHeader.hideVoiceCallButton = true

Messages - Parent component containing MessageHeader
Message List - Display messages in a conversation
Message Composer - Send messages in a conversation
Conversations - Navigate back to conversation list

​Where It Fits

​Minimal Render

​Actions and Events

​Callback Props

​onBack

​onError

​Actions Reference

​SDK Events (Real-Time, Automatic)

​Custom View Slots

​listItemView

​leadingView

​titleView

​subtitleView

​trailView

​Styling

​Style Hierarchy

​Global Level Styling

​Instance Level Styling

​Key Style Properties

​Customization Matrix

​Connection Management

​connect()

​disconnect()

​Menu Customization

​set(options:)

​Props

​avatarStyle

​dateTimeFormatter

​disableTyping

​enableThreadSubscription

​hideBackButton

​hideChatHistoryButton

​hideNewChatButton

​hideUserStatus

​hideThreadSubscriptionButton

​hideVideoCallButton

​hideVoiceCallButton

​onAiChatHistoryClicked

​onAiNewChatClicked

​parentMessage

​statusIndicatorStyle

​typingIndicatorStyle

​Events

​Date Time Formatter

​Global Level Formatting

​Instance Level Formatting

​Available Formatters

​Common Patterns

​Hide call buttons

​Custom back button action

​Custom subtitle with typing indicator

​Minimal header

​Related Components
